High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances

High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances

Marka Adı:	Masing Motor
Model Numarası:	MS-BL2430
Adedi:	1000
Fiyat:	Pazarlık edilebilir
Ödeme Şartları:	T/T
Tedarik Yeteneği:	1000000 parça/ayda

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

16949,RohS,CE,ISO

Ürün adı:

BL2430 Mikro Elektrikli BLDC Motorlar Fırçasız DC Moto

Şafta:

Yuvarlak, düz, D-Cut vb

Motor Boyutu:

φ24.4mm*30.8mm

Motorlu tip:

DC fırçasız motor

Motorun yönü:

CW & CCW

Sinyal:

Sinyal fonksiyonu mevcut

Yapı:

Dahili sürücü veya harici sürücü

PWM Countrol (Standart)

Yaşam Beklentisi:

800H-10000H

0,2W-10W(Dahili Sürücü)

Ambalaj bilgileri:

Karton kutu

Yetenek temini:

1000000 parça/ayda

Ürün Tanımı

BL2430 Micro Electric BLDC Motors Brushless DC Motor Title:

High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances

BL2430 Micro Electric BLDC Motors Brushless DC Motor Description:

Rated Voltage range:DC 6v-30V
Rated Speed: 1000RPM-10000RPM
The motor speed is proportional to the motor voltage
Rated Torque :0.5gf.cm-200gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Type :Brushless DC Motor
Motor Shaft diameter :φ2.0mm
Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm Length micro brushless motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW &CCW available
Structure selection:Built-in driver or external driver
Connection Mode:A
Signal :Signal Function Available

PWM Countrol(Standard)

Locked Rotor Protection

Power:3W(Internal Drive)

Life Expectancy:1000H-10000H(Oil Bearing)
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Widely used in :Robot,lock. Towel dispensers, automatic shutters, USB fans, slot machines, money detectors, coin return machines, currency count machines ,Doors that open automatically,Peritoneal dialysis machine, automatic TV rack, office equipment, household products, and so on.
We can provide samples for your test. BL2430 Micro Electric BLDC Motors Brushless DC Motor Key Attributes:

Rated Speed(RPM)

1000rpm-20000rpm

Continuous Current(A)

10mA-300mA or Customized

Efficiency

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-BL2430

Smart home, robots, office supplies, power tools,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Motor Type

Brushless Motor

Connection Mode

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

Micro Brushless DC Motor

Direction of motor

CW&CCW

Keywords

24v Brushless Micro Dc Motor

Motor Diameter

φ24.4mm

Weight

Noise

≤55DB

1000Pcs

Rated Voltage

DC 6v-30v

Color

Customer's Request

Life Expectancy

1000H-10000H(Oil Bearing)

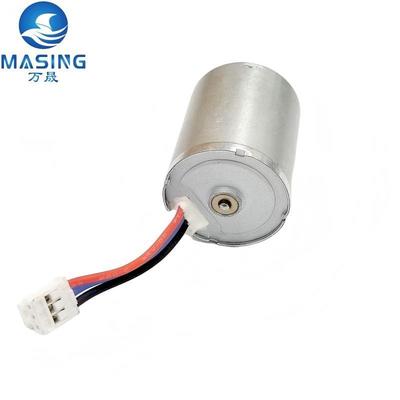

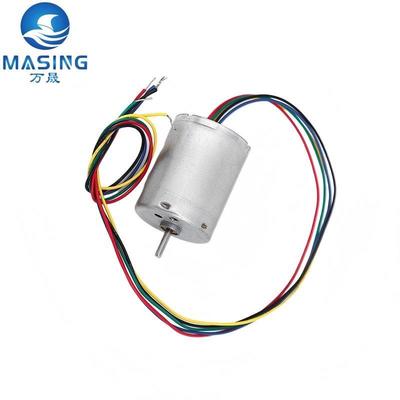

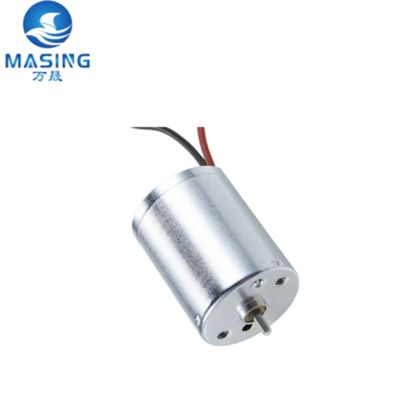

BL2430 Micro Electric BLDC Motors Brushless DC Motor Product Photo:

High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances 0

BL2430 Micro Electric BLDC Motors Brushless DC Motor Product Spec:

12V High Performance DC Brushless Motor Typical Applications

Smart home, robots, office supplies, power tools,precision instruments, automotive electronics,Personal Care,Car,

Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances 2

Motor Data:
Motor Model	Votage		No Load		At Maximum Efficiency					Stall
	Operating Range	Rated	Current	Speed	Current	Speed	Torque	Power	Efficiency	Current	Torque
	Operating Range	Rated	A	rpm	A	rpm	g-cm	W	%	A	g-cm
BL2430***	9~14V	12V	0.17	8000	0.67	6380	83.1	5.4	67.7	2.65	411
BL2430***	19~26V	24V	0.05	4600	0.18	3550	67.2	2.4	60.0	0.58	295

High Performance Low Speed BL2430 Micro Electric BLDC Motors Brushless DC Motor with IATF16949 For Household appliances 3

Parameters

1.The brushless DC motor is composed of the main body of the motor and the driver. It is a typical mechatronic product. It does not use a mechanical brush device, but adopts a square wave self-controlled permanent magnet synchronous motor and uses a Hall sensor to replace the carbon brush commutator , With NdFeB as the permanent magnet material of the rotor, the position sensor energizes the adjacent stator coil according to the position and magnetic pole of the rotor, so that the stator generates magnetic poles that are attracted to the rotor, attracting the rotor to rotate, and this repeats to push the motor to rotate.
Micro Brushless Motor
2.Brushless dc motors (BLDC motors) are now a common product due to their characteristics of low interference, low noise, and long life. Based on its exceptional performance, it is coupled with a highly accurate planetary gearbox, which significantly increases the motor's torque and decreases its speed, making it appropriate for a variety of application fields.

Packaging and delivery:

Packaging Details

Strong Carton 250pcs/box, or as you wish.

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

8.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$8/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?
A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3:Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4:Can I have samples for testing first?

A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5:How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
